Add to SafariWhat is the best alternative to Gigabyte GeForce GTX 1080 Xtreme Waterforce?
Top Pro
Top Pro
Top Con
Top Pro
Top Con
Top Pro
Top Pro
Top Pro
Top Pro
Top Pro
Top Pro
Top Con
Top Pro
Top Pro
Top Pro
Top Pro
Top Pro
Top Pro
Top Pro
Top Pro
The large size and the twin 95mm fans it's equipped with help a lot with keeping the card cooled. The fans will also switch off at low load which helps with the noise levels as well. The I/O plate has a honeycomb plate to help with the ventilation which again, greatly contributes to the overall cooling performance of the card. Benchmark-wise, it achieves 39 degrees C while idle which is a pretty standard temperature for 1080 cards. Under heavy load however, it reaches up to 73 degrees C. Still lower than the 80 degrees C set by the reference card, but a tad bit higher than what was achieved by some other GTX 1080 cards. See More
Under the massive fans there are two large heatsinks which in total amount to 120mm by 185mm at 30mm thick worth of heatsink. There are also three 8mm and two 6mm copper heatpipes used to improve efficiency. The great amount of air is pushed over the heatsink by two 100mm fans. Clearly, the massive size of this card has been put to good use and it's not designed to be large for the sake of being large. It offers excellent cooling and rarely exceeds 70 degrees C even under extreme strain. See More
The red, black and gold color scheme is not for everyone. If it had been just red and black it would have been much better and much easier to find a suitable motherboard, case and everything else to fit that color scheme. While not a deal breaker for most people who are only interested in performance, it can be a bit annoying for people who care about how their build looks. See More
The extensive cooling solution of the Xtreme Gaming GTX 1080 results in a very quiet operation. In idle situations, the cooling fans don't spin up which means the graphics card doesn't produce more noise than any other component in your system. Under full load, a sound production of 38 dBA was measured, which is considered to be very quiet by graphics card standards. For comparison: The reference Founders Edition of the GTX 1080 produces 49.4 decibels (A) under load. Decibels use a logarithmic scale, which means the Xtreme Gaming card is effectively two times as quiet as a reference GTX 1080. See More
The GIGABYTE GeForce GTX 1080 Xtreme Gaming requires the use of two 8-pin PCIe power connectors, compared to only one 8-pin connector for a reference GTX 1080. Although this means there is more headroom for large overclocks thanks to the extra connector, the card doesn't require this amount of power at all. An extra 6-pin power connector which adds 75W instead of the 8-pin's 150W, would be a more logical choice. This can be an issue for users with limited available connections on the power supply. See More
The exterior of the Gigabyte GTX 1080 Xtreme Gaming features a lot of RGB lights and you can adjust the color of these lights via Gigabyte's included software package. This allows you to customize the look of the graphics card, which can be useful if your setup is built with a specific color scheme in mind. See More
Gigabyte is offering an extended Xtreme Care warranty period of 4 years, which is a major improvement compared to the regular 1-year warranty on graphics card. In the event of a failure within this period, Gigabyte will repair the card or send you a replacement model. Online registration is required. See More
The GTX 1080 Xtreme Gaming cards are especially suitable for virtual reality headsets such as the Oculus Rift or the HTC Vive, which require two HDMI-ports. Included in the packaging is a 5.25" extension bay, with two USB 3.0 ports and a set of HDMI inputs. With this frontpanel, users are no longer required to route their VR headset through the back of the system. The graphics card itself features two HDMI-ports on the opposite site of the usual ports, which allows a quick pass-through to this frontpanel. When using these two specific HDMI ports, two of the three DisplayPort inputs are disabled. See More
The GTX 1080 Xtreme Gaming reaches a maximum temperature of 66 degrees Celsius under load with the increased clock and memory speeds. This is a major improvement over the Founders Edition's 82° C and an impressive feat for an air cooler. This not only extends the longevity of the card, but also prevents throttling from happening. Throttling can occur when temperatures reach around 80° C or higher. This is when the graphics card will slow itself down (reduce clock speed) in order to stay cool, effectively sacrificing performance. With the default clock speeds, this should never occur with the Xtreme Gaming card. See More
The higher clock and memory speeds of GIGABYTE's Xtreme Gaming edition of the GTX 1080 results in better performance. In Battlefield 4 using 1440p resolution and maximum settings, an average framerate of 118 was achieved. For comparison, a GTX 1080 Founders Edition only managed to achieve 110 fps, an almost 7% difference. Similar results can be seen in Far Cry Primal, again with 1440p resolution and maximum settings. The Xtreme Gaming card manages to get 84 frames per second on average, compared to the Founders Edition's 78 FPS. In DOOM, the difference is even more noticeable. With maximum settings and 1440p resolution, an average FPS of 140 was achieved for the Xtreme Gaming card - a 15 FPS improvement over the reference card. When tested in 4K, the Xtreme Gaming managed to achieve 72 average FPS compared to the Founders Edition's 62 frames per second, a difference of almost 14%. See More

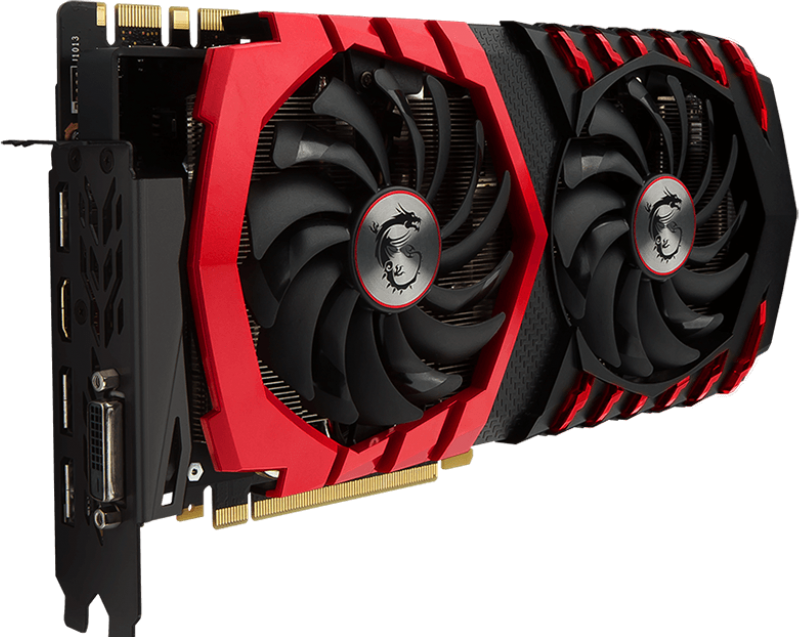

The cooler used on the Gaming X is the Twin Frozr IV and performs very well. In an idle situation, the chip measured at 36° Celsius in a room temperature of 21° C. That's a bit higher than the reference GTX 1080 - but the fans do not spin at all under 60° C for a completely silent operation. Under full load the chip heats up to 70° Celsius, which is a whopping 12 degree Celsius cooler than a GTX 1080 Founders Edition. See More
The MSI Gaming X version of the GTX 1080 requires an extra 6-pin power connector, for a total of one 6-pin and one 8-pin connector. A reference GTX 1080 only needs a single 8-pin connector, but this MSI card requires the extra connector because of the slightly higher clock speeds. Although the TDP (thermal design point and maximum power consumption) of the MSI Gaming X GTX 1080 has been rated at 180 watts just like the reference card, the TDP is around 198 watts in reality. It only uses 14 more watts than a reference GTX 1080 during full load, but the extra power connector can be inconvenient for cable routing or for power supplies with a limited power capacity and connectors. See More
The cooler does not spin under a temperature of 60° Celsius, making the card silent in normal situations. When the fans are needed however, the card remains very quiet. Measured from a distance of 75 centimeters from a closed environment, the Gaming X produces 39 dBA of noise. For comparison: that's a little bit more quiet than the noise a refrigerator produces. Irritating sounds such as coil whine are also not present. See More
The MSI GTX 1080 Gaming X 8GB offers great, smooth performance even with the most demanding graphics requirements. Here are some examples of framerates: Rise of the Tomb Raider 4K (very high details): 49fps Hitman (2016) UHD (Max. detail): 49fps Fallout 4 UHD (Ultra detail): 59fps The Witcher 3 UDH (Max detail): 51fps While these aren't quite 60fps, they are all very close - and some of the best in-game performance available from any graphics card. See More

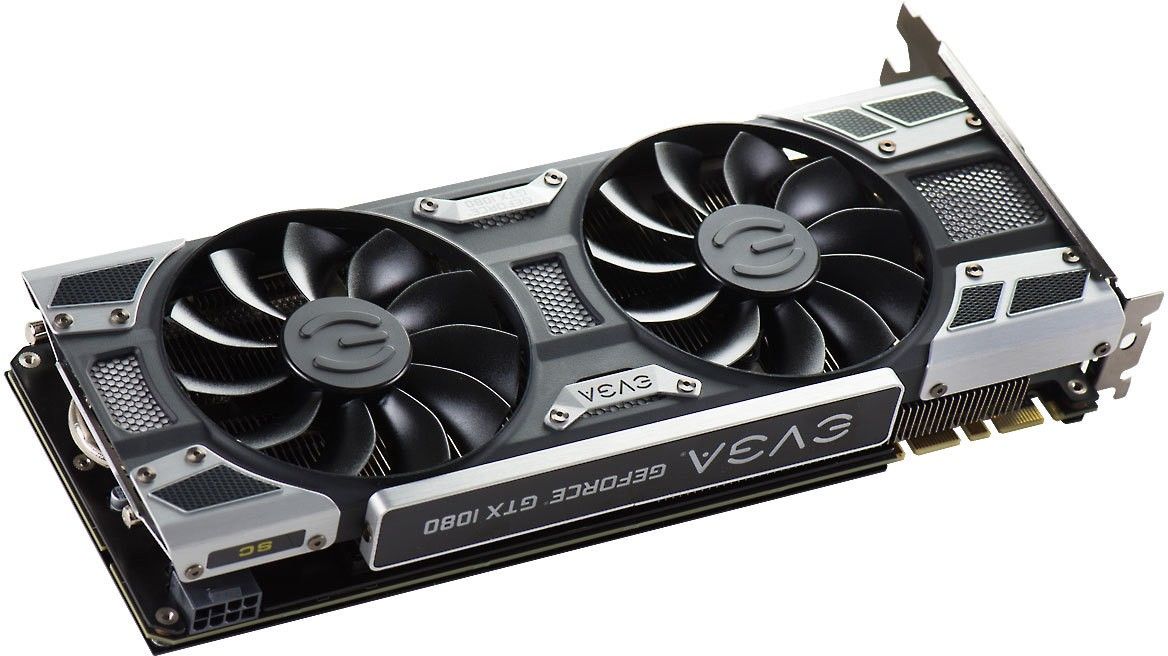

The EVGA GTX 1080 ACX 3.0 uses its own built-in cooling system which includes two fans. The ACX 3.0 cooler has been used on a lot of high-end graphics cards, and the GTX 1080 by EVGA is no different. In an idle situation, the EVGA GTX 1080 generally reaches temperatures up to 56° Celsius. At a first glance, that's pretty high, but the fans don't start spinning unless a temperature of 60° is reached. During full load, the EVGA GTX 1080 chip heats up to a maximum of 75 degrees Celsius - eight degrees cooler than a reference (Founders Edition) GTX 1080. The maximum temperature of 75° C also means that throttling doesn't occur with the EVGA GTX 1080 SC Gaming ACX 3.0, something that tends to occur with other GTX 1080 cards with worse coolers. In other words, the graphics card won't slow itself down in order to stay cool: performance will be 100% at all times. See More
The GTX 1080 SC Gaming ACX 3.0 is a virtually silent card. In a non-gaming idle situation, the two fans of the cooler don't spin up at all - the card stays completely inaudible up to temperatures of 60° Celsius. Even during full load and intensive gaming situations, this edition of the GTX 1080 is remarkably quiet and stays under 40 decibels (when measured two inches above the motherboard in an open environment). For comparison: the reference GTX 1080 produces 45.5 dB of noise. Annoying coil whine sounds are not present in this edition either. See More
The GTX 1080 SC Gaming ACX 3.0 features a higher clockspeed compared to a reference GTX 1080, which means it has been factory overclocked to reach higher framerates and overall better performance. The base clock speed has been set at 1708 MHz, which is a 6.3% increase compared to the reference 1607 MHz. The boost clock has also received a factory overclock to 1847 MHz compared to the standard 1733 MHz, a difference of 6.5%. This results in a slightly better performance, although practical performance differences aren't as noticeable. For example: In Rise of the Tomb Raider at 1080p and maximum settings, the SC ACX 3.0 is nearly 5 FPS faster than a regular GTX 1080. In the benchmarking suite 3D Mark Fire Strike Extreme, a GTX 1080 with reference clock speeds achieves a score of 9,387 points while the EVGA Superclocked takes the crown at 9,622 points. Although the performance differences between this overclocked card and a reference GTX 1080 are minimal, the extra power is nice to have nonetheless. See More
The AMP! Extreme is probably one of the quietest cards in this category. Idle noise level is a bit hard to calculate in this case since for temperatures under 60 degrees C the fans are off, but under very light load which pushes the card to about 60 degrees C it reached a noise level of about 33dBA, comparable to the idle noise level of most 1080 cards. Under heavy load however, it registered a noise level of 38dBA, the lowest in this comparison. See More
Performance-wise, the ZOTAC GTX 1080 AMP! Extreme achieved a 3DMark Score (Firestrike) of 19410 with minimal FPS never dropping below 86 with averages of 157.25 for FHD and 109.5 for WQHD. At a price of $639.99, which is an average price for 1080 graphics cards and numbers that usually top benchmark charts, the ZOTAC GTX 1080 AMP! Extreme offers great value for what you will be paying. See More
The 1080 AMP Extreme is equiped with three 90mm dual-bladed EKO fans, which according to Zotac increase the airflow by 30% and increase the air pressure by 15%. Furthermore, the fans are equipped on top of a heatsink with six variably configured heatpipes which greatly increases the heat extraction off the card. Or at least, that's what Zotac claims. When idle, it does not surpass the threshold of 33 degrees C and even under heavy load it reached peak temperatures of 73 degrees C, well below the 80 degrees C set by the GTX 1080 Founders Edition. See More
