What are the best value GPUs for VR gaming?

7

Options
Considered

122

User
Recs.

Jan 4, 2018

Last
Updated

Here’s the Deal

7 Options Considered

7 Options Considered	Price	Release Date	Memory Type
88 AMD Radeon RX 480	$199	Jun 29th, 2016	GDDR5
-- NVIDIA GeForce GTX 1060 6 GB	$249.99	Jul 19th, 2016	GDDR5
56 NVIDIA GeForce GTX 1070	$380	Jun 10th, 2016	GDDR5
-- AMD Radeon RX 470	-	Aug 4th, 2016	GDDR5
-- MSI Computer Radeon RX 480 Gaming X 4GB	$259.99	–	–

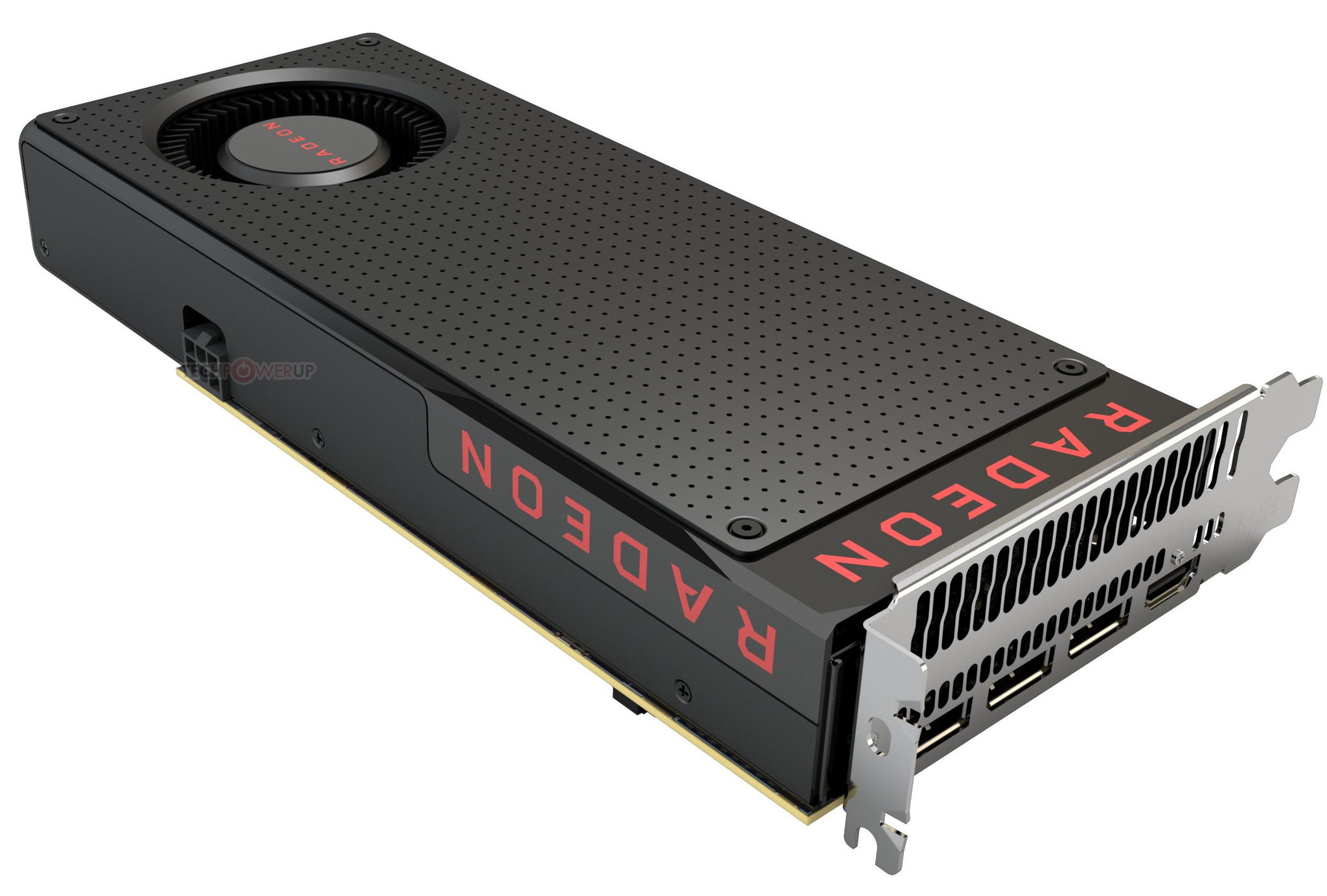

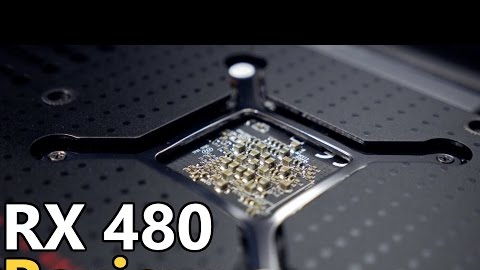

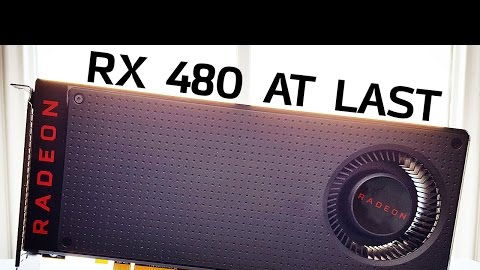

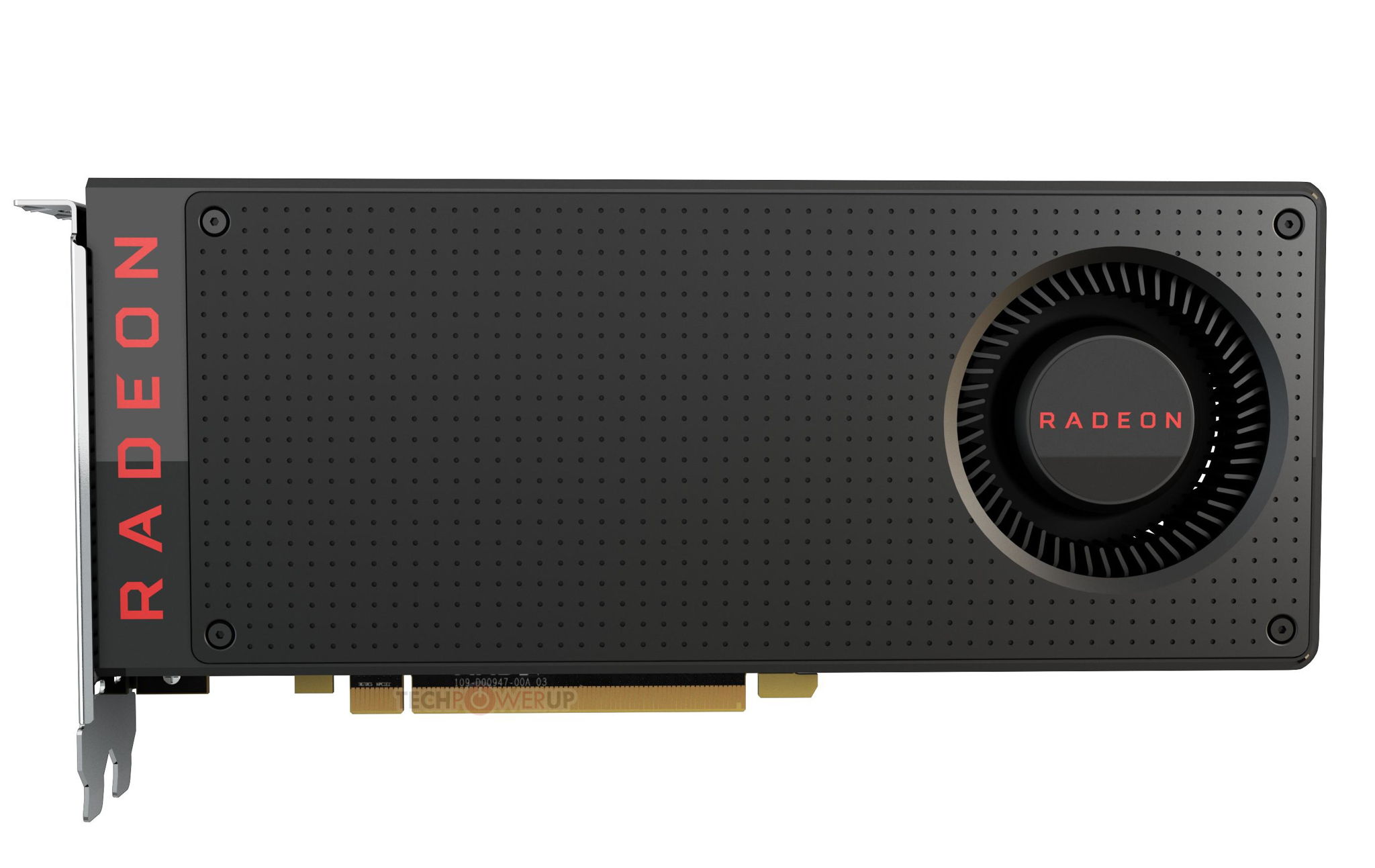

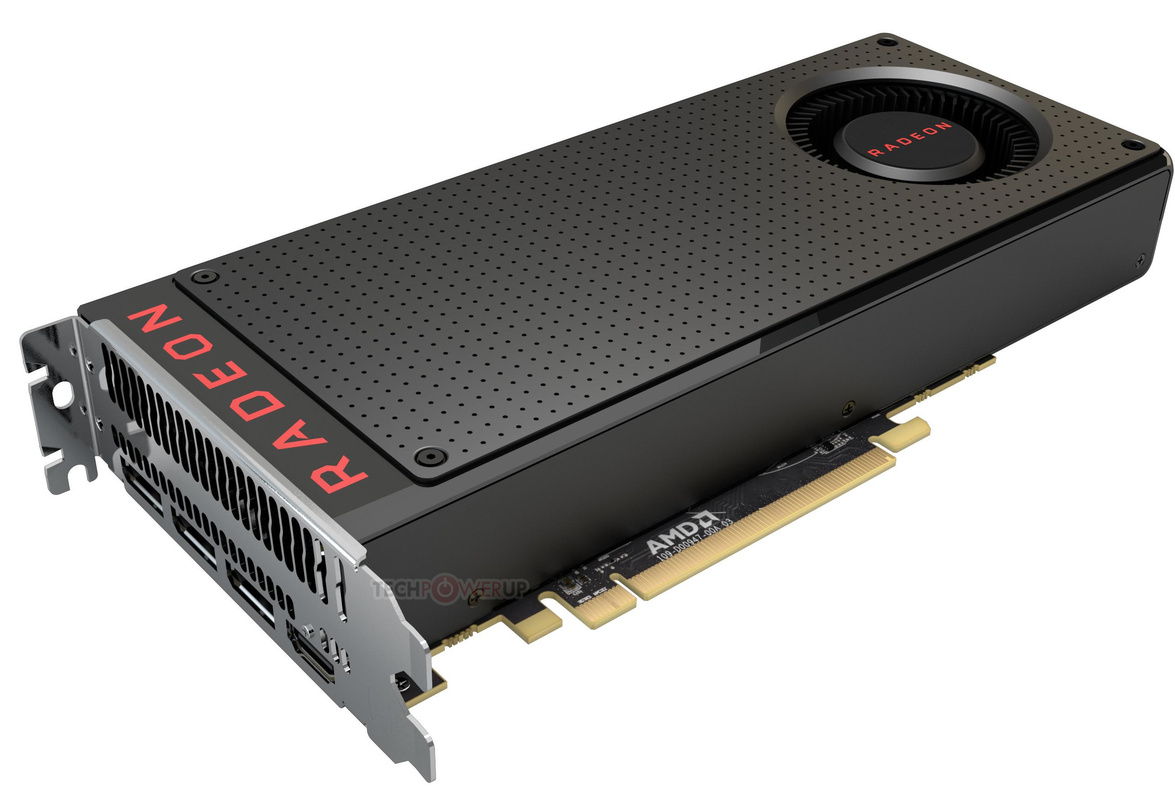

AMD Radeon RX 480

Top Pro

Excellent performance for the price

Price/performance wise, the RX 480 is an excellent graphics card. It performs better than previous generation high-end GPU's such as the GTX 980 and is suited for high-quality 1080p and 1440p gaming. In some situations, the RX 480 can even handle games in 4K-resolution, albeit with lower graphical settings. In Rise of the Tomb Raider on 'Very High' quality mode and all other graphical settings set to maximum, the RX 480 achieves an average framerate of 63 FPS in 1080p, 44 frames per second in 1440p and 23 FPS when playing in 4K resolution. Similar results can be seen in benchmarks for Hitman: an average FPS of 75 in 1080p, a very fluent 57 FPS in 1440p and 31 frames per second in 4K. Both Rise of The Tomb Raider and Hitman are DirectX 12 compatible games and can be considered as quite intensive to run. AMD's card also performs excellently in older titles such as Grand Theft Auto V: 84 FPS, 59 FPS and 30 FPS for 1080p, 1440p and 4K, respectively. In Alien Isolation, results of 137 FPS for Full HD, 83 FPS for 1440p and 35 FPS for 4K are achieved. All graphical settings were set to maximum. In short, the RX 480 is ideal for high-fidelity gaming in 1080p and 1440p and often provides the player with a stable framerate of above 60 frames per second with all graphical settings and eyecandy set to the maximum. Gaming in 4K isn't as fluent, but performance can be improved by using less intensive settings. See More

Top Con

Limited overclocking potential

AMD has made it a bit harder to overclock the RX 480, as you can no longer adjust the voltage or clockspeed manually. Overclocking potential is disappointing, as the RX 480 does't appear to be stable at slightly higher clockspeeds. For example, a slight base clockspeed increase of 6.5% already caused artifacts and crashes. However, the video memory can be overclocked at maximum speed without many issues. See More

Top Pro

Low power consumption

The AMD RX 480 can be powered via a single 6-pin PCIe power connector with a maximum energy consumption of 150 watts. A single connector not only ensures a low energy consumption, but is also ideal for power supplies with a limited amount of wattage and/or 6-pin connectors. See More

Top Con

Power distribution raises some concerns

When the RX 480 cards were released, there was an issue where the GPU would draw too much power from the motherboard's PCIe slot, exceeding the 75W limit. This could lead to instability or permanent damage. AMD has somewhat resolved this issue by re-distributing power usage to the 6-pin connector, which is more capable of handling larger amounts of power than specified. Although this update prevents motherboard damage, the RX 480 still draws more power than stated in the thermal design point (TDP). Users can choose to underclock the GPU to stay completely within the power limits, although this will lead to a minor performance decrease. This setting is turned off by default. See More

Top Pro

Asynchronous shaders improve performance in recent games and VR

The RX 480 offers concurrent/parallel CPU to GPU communication in DirectX 12, Mantle and Vulkan with asynchronous shaders for the stream processors. Asynchronous shaders allow the developers of games to maximize the potential of AMD's new Polaris architecture and this technology is used to optimize DX12, Mantle and Vulkan performance in recently released compatible games. In short, developers can now use multiple task queues and split up GPU power across multiple tasks at the same time. This also works well in virtual reality situations, where head tracking is required. Latency (delay between the images that appear on the display) and stuttering can be reduced by using asynchronous shading. This is reflected in the SteamVR Performance Test, where the RX 480 is given the 'VR Ready' label, indicating that the card is able to maintain a minimum framerate of 90 FPS at all times in an average virtual reality game. See More

Top Pro

Two RX480 cards are a decent alternative for a single GTX 1080

The GTX 1080 is the second fastest grpahics card by NVIDIA and comes with a price tag of over $600. Two Radeon RX 480 cards configured in a CrossFire-setup perform similarly to a single GTX 1080, but with a much lower combined price tag of around $400. In Ashes of the Singularity, performance is identical with an average framerate of 55 FPS. In most other gaming situations, the two RX 480 cards are a tad slower than a GTX 1060. The dual RX 480's score 16,763 3DMark Firestrike Benchmark points, while the GTX 1080 achieves a result of 17,671 - a five percent increase. In Metro Last Light, two RX 480's are capable of achieving an average framerate of 131 FPS for 1080p, 89 FPS for 1440p and 43 FPS for 4K, respectively. Results for the GTX 1080 are 156 FPS (1080p), 98 FPS (1440p) and 45 FPS (4K). While a single GTX 1080 is still somewhat faster than two Radeon RX480 cards configured in CrossFire, the performance difference can be described as minimal and similar performance can be achieved for a much lower price point. It is worth noting however that not all games support multi-GPU's setups (well), which can lead to marginable performance gains for the second card. This setup also requires more power compared to a single 1080. See More

Top Pro

Great performance improvements in Vulkan-compatible games

When using Vulkan, a graphical API that allows developers to better communicate with the GPU, the RX 480 can achieve great performance improvements compared to the more standard DirectX 12 or OpenGL API's. Some recent games offer support for Vulkan, such as Doom, Dota 2 and Ashes of The Singularity. When playing Doom in 4K, the RX 480 is able to achieve an average framerate of 26 FPS in OpenGL, while Vulkan performance is significantly better at 35 frames per second. Similar results are seen when playing at a lower 1440p or 1080p resolution: 51 FPS (OpenGL) and 69 FPS (Vulkan) and 78 FPS (OpenGL) and 110 FPS (Vulkan), respectively. While NVIDIA's new Pascal architecture is also compatible with the Vulkan API, the AMD RX series benefit greatly from it. In fact, the GTX 1060 which is considered the direct competitor of the RX 480 and is faster than the RX 480 in terms of raw power, does not benefit from using Vulkan at all. Because of this, the RX 480 is still significantly faster as seen in these benchmarks. See More

Top Pro

Some 4GB version cards can be upgraded to 8 GB with a new BIOS

AMD has chosen to provide all reference RX 480 cards with 8 gigabytes of video memory, even on the cheaper models which are specified for 4 GB only. This applies to the reference cards and most third party RX 480 chips as well - the decision to implement 8 GB regardless of the RX 480 edition was made for performance reasons. A tool has been posted online called ATIFlash, which allows users to edit the BIOS of a '4 GB' RX 480. A BIOS file of the 8 GB card is also available via the same link. It is however only recommended for enthusiast tweakers and is at your own risk. It's also necessary to check if you indeed are using a card with the extra memory, as it's possible newer batches of the RX 480 will effectively limit physical memory to 4 GB. However, this is an easy and especially inexpensive method of upgrading a RX 480 4 GB to a RX 480 8 GB card. See More

Specs

Release Date:Jun 29th, 2016

Memory Type:GDDR5

Memory Clock:2000 MHz

Memory Size:8 GB

See All Specs >

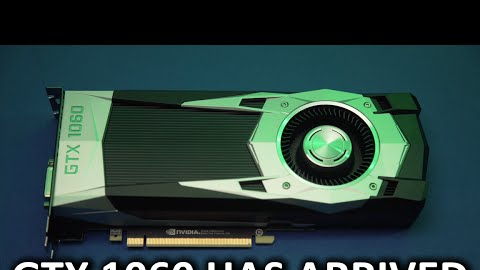

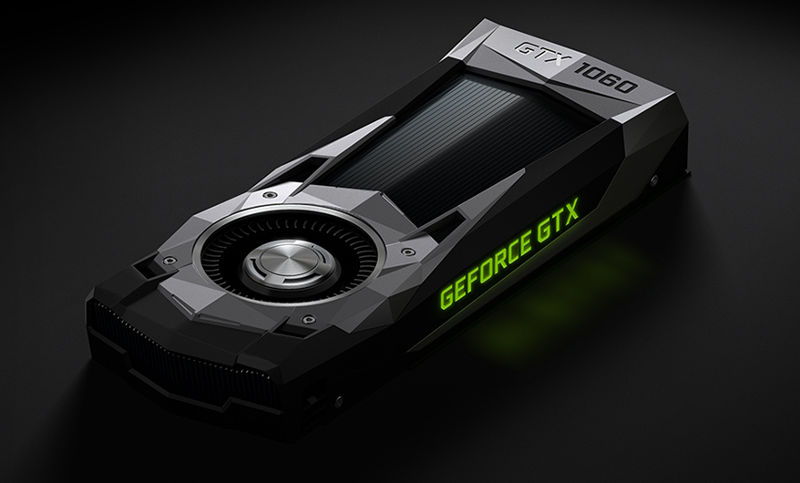

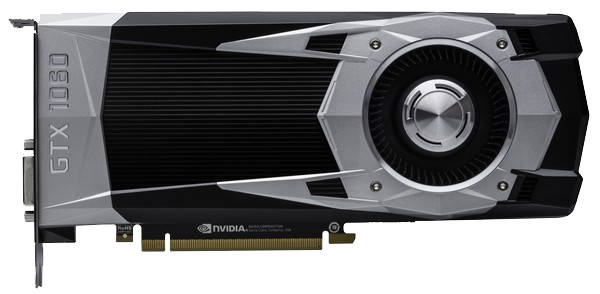

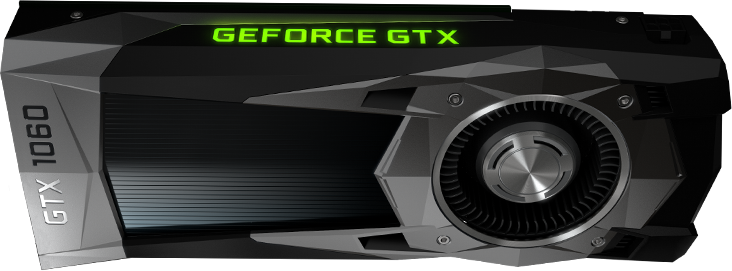

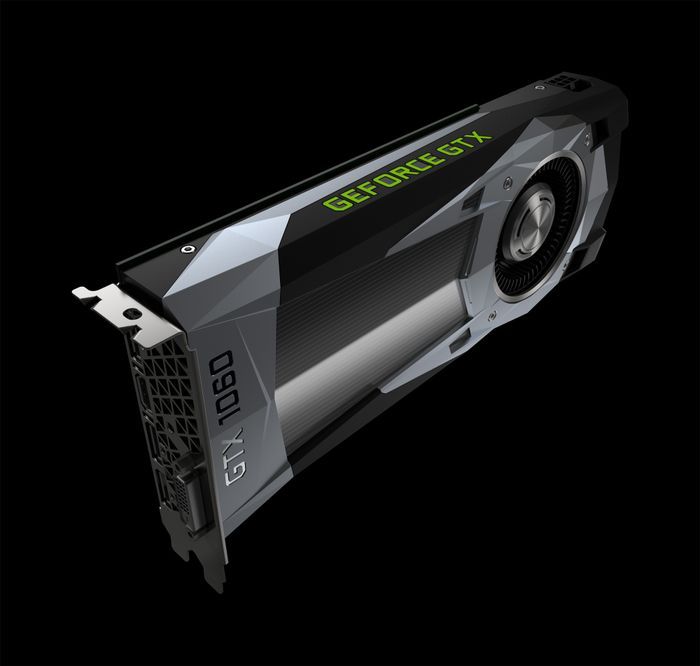

NVIDIA GeForce GTX 1060 6 GB

Top Pro

Low power consumption

While power consumption is a little higher than the previous-generation GTX 960 in some cases, the 1060 is the fastest graphics card on the market with a limited maximum consumption of 120 watts. At idle, it uses about 9 watts of power - just over half of the RX 480's 16 watts. When looking at intensive full load scenario's such as a Furmark test, the maximum power consumption measured is 122 watts - a whopping 44 watts less than the RX 480. See More

Top Con

Lacks support for SLI

The GTX 1060 does not offer support for SLI (Scalable Link Interface), which allows users to install multiple identical graphics cards in order to gain performance. Unlike other mid-range graphics cards, you can't connect more 1060s and run multiple GPUs in parallel. You can still connect more 1060s or other cards, up to one per monitor, but computation will not be balanced between the cards and you will lose performance whenever one card bottlenecks. See More

Top Pro

Outperforms AMD's RX 480

The GTX 1060 can be seen as NVIDIA's direct competitor to the AMD RX 480, with both cards offering similar price points. The GTX 1060 outperforms the RX 480 in most gaming titles, except for those that are optimized for AMD's Graphics Core Next platform, such as Hitman or Ashes of the Singularity. In most other titles however, such as Battlefield 4, GTA V, Metro: Last Light, Rise of The Tomb Raider, The Division and others, the GTX 1060 outperforms its competition. The average performance increase over the RX 480 is 13,5%. See More

Top Con

Minimal performance improvements from Vulkan

Vulkan is a graphical API that allows developers to communicate better with the GPU, which should in theory result in performance improvements compared to the DirectX 12 or OpenGL APIs. The GTX 1060 doesn't perform much better in Vulkan however, and the difference compared to OpenGL is minimal. Doom is one of the first (and only) titles with support for Vulkan and serves as a good benchmark for OpenGL vs Vulkan performance. At 1080p, the 1060 reaches 101.3 FPS in OpenGL, increasing to just 101.5 FPS in Vulkan. At 1440p, there is again a minimal performance boost from 68.3 to 69.3 FPS. AMD's new Polaris-based graphics cards are significantly better optimized for Vulkan, for example the Radeon RX 480 increases from 85 to 111 FPS at 1080p, a 31% increase. Since few games currently implement Vulkan and there are few reasons for them to do so at present, this is not a serious drawback. However, games may become better optimized for AMD GPUs in future. See More

Top Pro

Can handle overclocks well

By overclocking your graphics card, you increase the clock speeds of the chip and memory to gain even more performance. The GTX 1060 handles overclocks well, relatively high boosts of over 200 MHz for both the GPU and memory clock speeds aren't uncommon without the use of special cooling solutions. In this case, an overclock of 229 MHz on the GPU and 380 MHz on the memory result in a 14% better performance in Battlefield 3, in 1440p. See More

Top Pro

Adequate amount of VRAM available

The GTX 1060 comes with 6 gigabytes of VRAM memory, which puts this GPU directly between other mid-range cards with 4 or 8 gigabytes of memory. Lots of video RAM isn't particularly useful in current games, but future titles will most likely take advantage of larger amounts of video memory. 6 GB is considered a sweet spot and the two extra gigabytes compared to the more standard 4 GB makes the card a bit more future proof. See More

Top Pro

Offers exclusive features such as Ansel and Simultaneous multi-projection

The GTX 1060 and other Pascal-based GPU's from NVIDIA offer a couple of exclusive features that aren't available on previous-generation graphics cards or current GPU's made by AMD. Taking advantage of the new GPU architecture, NVIDIA has introduced a feature called simultaneous multi-projection. It allows developers of games and applications to improve performance when rendering multiple viewports of the same image. This is particularly useful when using a multi-monitor setup or in virtual reality where two images are required, one for each eye. Simultaneous multi-projection allows up to 16 different viewpoints and only requires calculating the geometry of a scene once. In compatible games, users of multi-screen setups can calibrate this experience so that distortion no longer occurs. Virtual reality games can use SMP to improve performance, although developers will specifically need to implement this feature in their games. Ansel is another feature that is exclusive to NVIDIA's Pascal-based graphics cards. Ansel can be described as a very extensive 'photomode', where you can capture massive in-game screenshots of several gigapixels or capture images in 360 degrees. The player is also able to use filters, adjust camera positions, take HDR-images and share them via the built-in software. See More

Top Pro

Excellent 1080p and VR performance, suitable for 1440p

The GTX 1060 performs extremely well in 1080 (Full HD) gaming situations, often providing a very playable framerate with maximum fidelity settings. For example, the average FPS in Battlefield 4 under the Ultra Preset is 97.5. In Grand Theft Auto V under very high settings, the card is able to reach an average FPS of 115, which is remarkable for a mid-range graphics card. The GPU also does well in games that are optimized for AMD's architecture such as Ashes of the Singularity, where the GTX 1060 is able to achieve a result of 46 FPS under the Extreme Preset. In short, this GPU performs excellently in demanding gaming situations in 1080p and offers the player a good framerates coupled with maximum graphic settings. For people using a slightly higher resolution such as 1440p (2560 x 1440 pixels), the GTX 1060 also does quite well. When looking back at the Battlefield 4 benchmarks, the GPU handles 1440p and Ultra very well with an average framerate of 62 frames per second. The same can be said for Grand Theft Auto V at 82.5 average FPS and the performance difference in Ashes of the Singularity is quite small at 40 FPS under extreme settings. In terms of performance compared to NVIDIA's previous generation card, the GTX 1060 performs slightly worse than a GTX 980 and floats between the 970 and 980. Compared to the mid-range GTX 960 however, the performance improvement is over 70%. This MSI OC edition is also slightly overclocked with a boost of 40 MHz on the base clock, which will result in slightly better performance as well. In terms of VR performance, the GTX 1060 6 GB scores 7.9 points in the relative SteamVR Performance Benchmark, which is firmly above the 'VR Capable' rating that's given to scores above 6.0. The VR Capable rating implies a steady framerate of at least 90 frames per second in an average VR-situation. See More

Specs

Release Date:Jul 19th, 2016

Memory Type:GDDR5

Memory Clock:2002 Mhz

Memory Size:6 GB

See All Specs >

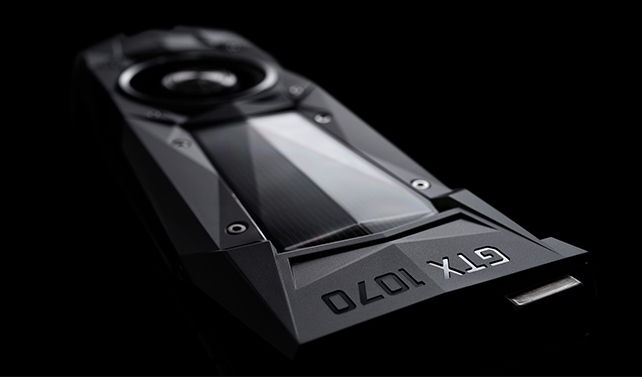

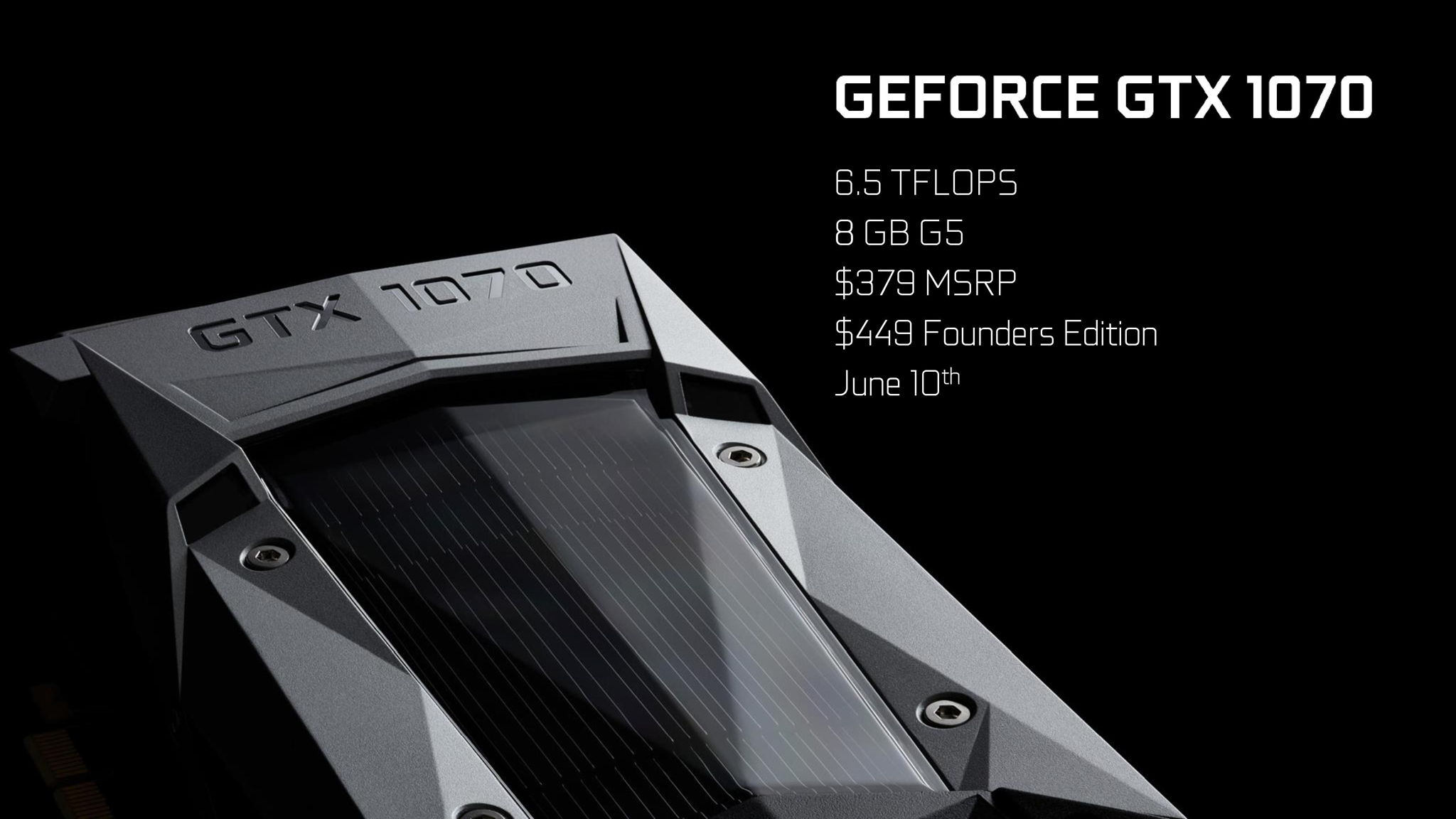

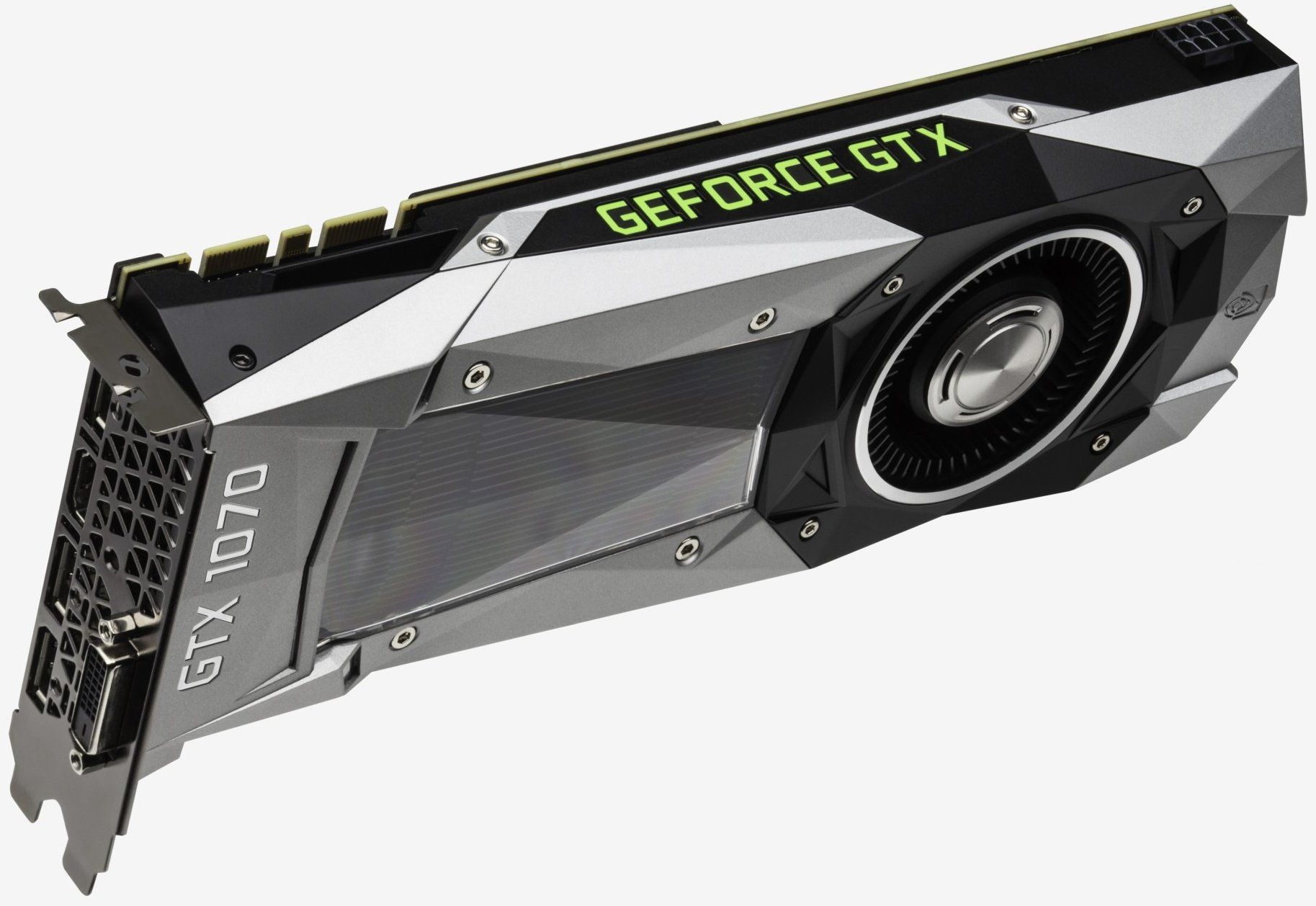

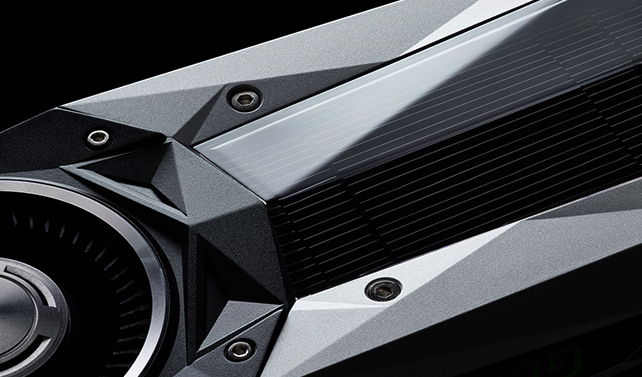

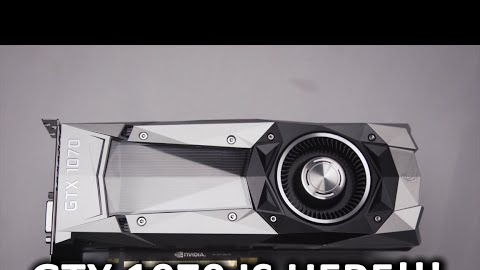

NVIDIA GeForce GTX 1070

Top Pro

Good price-for-performance

At 1440p resolution (1440 x 2560) with the highest available settings the GTX 1070 achieves an average fps of 98.4 for Dirt Rally, 84.4 for Battlefield 4 and 62 for GTA V. This makes the 1070 ideal for 1440p gaming and the card can often provide very high framerates of more than 120 fps when playing in 1080p. Gaming in 4K is also an option with the GTX 1070, where stable and fluent framerates of more than 30 fps can be achieved on ultra settings. See More

Top Con

Brand new hardware, risk involved in early adoption

It is unknown if there are inherent issues with this GPU (such as quality control, motherboard compatibility issues, driver issues, OS issues, etc) as it was only recently announced and has not undergone large-scale testing in the consumer market. See More

Top Pro

Very quiet operation

Measured 75 cm away from a PC, the GTX 1070 has an idle sound production of 34 dBA and 40 dBA under stress. In a silent room, the sound production of the card is definitely audible - but isn't experienced as annoying. As a comparison - 40 dBA is equivalent to the noise a refrigerator produces. See More

Top Con

No native support for 3- and 4-way SLI

SLI - short for Scalable Link Interface - is NVIDIA's technology of combining the power of two or more identical GPU's in order to reach a better performance. In other words, you can use multiple videocards to further increase performance. Although the GTX 1070 supports 2-way SLI without a problem, NVIDIA does not offer support for 3- and 4-way SLI. The included SLI-bridge which serves as a connector between the two cards, is only compatible in a 2-way configuration. 3-way and 4-way SLI are possible, but aren't supported. You'll have to use an older SLI-bridge found on older GeForce models and you'll need to generate an 'Enthusiast Key' on NVIDIA's website. However, NVIDIA does not guarantee a 3- or 4-way configuration will provide any noticeable benefits. See More

Top Pro

Doesn't produce much heat

Under load, the reference GTX 1070 produces around 76 degrees Celsius heat (measured in 20° C room temperature) which is on the lower side for high-end graphics cards. Compared to the slightly more powerful GTX 1080, this graphics card runs six degrees Celsius cooler. See More

Top Pro

Well optimized

NVIDIA properly optimized the GTX 1070 for DirectX. This means that games supporting DirectX 11 will see a slight performance boost, but more-so for the upcoming games using DirectX12. See More

Specs

Release Date:Jun 10th, 2016

Memory Type:GDDR5

Memory Clock:2002 MHz

Memory Size:8 GB

See All Specs >

AMD Radeon RX 470

Top Pro

VR Capable according to SteamVR benchmark

Although the RX 470 lacks the overall computing power to render VR games comfortably, the card has been given the 'VR Capable' rating by SteamVR, which implies a stable framerate of over 90 frames per second but not at the level that's recommended for smooth VR experiences. See More

Top Con

Mediocre performance-per-watt ratio

The RX 470 uses AMD's new Polaris 10 architecture and is more efficient than previous-generation GPU's, but the performance-per-watt ratio remains somewhat mediocre. The TDP (thermal design point and maximum power consumption) of the RX 470 chip is measured at 125W. The more expensive GTX 1060 by NVIDIA heavily outperforms the RX 470 but still manages to achieve the same levels of power consumption. Efficiency-wise, the Radeon RX 470 doesn't impress. See More

Top Pro

Great performance improvements in Vulkan-compatible games

When using Vulkan, a graphical API that allows developers to better communicate with the GPU, the RX 470 can achieve great performance improvements compared to the more standard DirectX 12 or OpenGL API's. Some recent games offer support for Vulkan, such as Doom, Dota 2 and Ashes of The Singularity. When playing Doom under the standard OpenGL in Ultra Settings and 1080p resolution, the RX470 is able to achieve an average framerate of 84.2 FPS. When using Vulkan however, the same RX 470 performs significantly better with an average result of 101.5 frames per second, a 20.5% performance increase. While NVIDIA's new Pascal architecture is also compatible with the Vulkan API, the AMD RX series benefit more greatly from it. In the same benchmarks, results for the competing GTX 1060 were also provided, where the performance improvement under Vulkan was only 6%. See More

Top Con

Limited overclocking potential

The RX 470 has limited overclocking potential as AMD has decided to cap the maximum memory bandwidth at 1850 MHz. Although GPU clockspeed increases of 10 - 15% aren't uncommon up to 1355 MHz, differences in games are less noticeable because the card tends to struggle with this maximum speed. If AMD had allowed further clockspeed increases of the memory, the RX 470 would be better suited for overclocking. See More

Top Pro

Asynchronous shaders improve performance in recent games

The RX 470 offers concurrent/parallel CPU to GPU communication in DirectX 12, Mantle and Vulkan with asynchronous shaders for the stream processors. Asynchronous shaders allow the developers of games to maximize the potential of AMD's new Polaris architecture and this technology is used to optimize DX12, Mantle and Vulkan performance in recently released compatible games. In short, developers can now use multiple task queues and split up GPU power across multiple tasks at the same time. This also works well in virtual reality situations, where head tracking is required. Latency (delay between the images that appear on the display) and stuttering can be reduced by using asynchronous shading. See More

Top Con

Very minimal price difference with RX 480

The RX 470 is positioned slightly under the RX 480 by AMD, but the price difference between these two GPU's is very minimal. Both GPU's hover slightly above the $200 mark, which gives users little reason to purchase a RX 470 instead of a faster RX 480. See More

Top Pro

Ideal for 1080p gaming

The RX 470 performs extremely well in recent games when played in Full HD resolution and with the highest possible graphical settings. For example, the RX 470 is able to achieve an average framerate of 117 fps in DOOM. The card also manages to get a very fluid 68 fps in Fallout 4 and even more intensive games such as Hitman perform well with the RX 470, averaging at 67 frames per second. In short, the RX 470 is ideal for playing games with a fluent framerate in 1080p. When gaming on a higher resolution of 1440p (2560 x 1440 pixels), performance on the RX 470 is often a hit or miss. Some more optimized games such as Dirt Rally (52 fps) or DOOM (77 fps). However, some other games will struggle to deliver a fluent gameplay experience. The average 1440p framerate in both The Division and Rise of The Tomb Raider for example hovers around the 45 fps mark, although a higher framerate can be achieved if graphical settings are toned down. See More

Specs

Release Date:Aug 4th, 2016

Memory Type:GDDR5

Memory Size:4 GB

Memory Clock:1650 MHz

See All Specs >

MSI Computer Radeon RX 480 Gaming X 4GB

Add Video or Image

Top Pro

Almost silent fan, even when under a load

Under 60 degrees Celsius, this MSI Computer Radeon RX 480 Gaming X 4GB card doesn't run it's fans which means that it runs completely silent until you start pushing it. Under a full load, it measures in at 38dB(A)s which is extremely quiet for such a powerful graphics card. See More

Top Con

Low memory clock means slower performance

MSI have stuck with the default RX 480 memory clock speed of 7GHz on this card while virtually every other RX 480 card has been overclocked to 8GHz. This means that the card's read speeds are slower, and will decrease the performance of this card. See More

Top Pro

Stays fairly cool even when pushing it hard

The highest temperature recorded on this RX 480 Gaming X card is 73 degrees Celsius. This is just below average for other RX 480 cards, and is low enough that thermal throttling shouldn't be an issue (generally 80 degrees Celsius is considered throttling territory). See More

Top Pro

Good performance relative to other RX 480 cards

The clock speeds are above average, which will increase performance over what the other cards can provide. The base clock speed is 1266MHz, and the boost is 1316MHz. It is faster than the significantly more expensive Gigabyte AMD Rx 480 8GB, but is just a touch slower than the Asus Dual-Fan Edition and Sapphire RX 480 8GB cards. See More

NVIDIA GeForce GTX 1060 3 GB

Top Pro

Consumes little power for its performance

Power consumption levels of the GTX 1060 are very good. While the power consumption is somewhat higher than the previous-generation GTX 960 in some gaming circumstances - the new 1060 is the fastest graphics card on the market with a limited maximum consumption of 120 watts. In an idle situation, the GTX 1060 only uses about 9 watts of power - almost half of the amount a RX 480 requires at 16 watts. When looking at intensive full load scenario's such as a Furmark test, the maximum power consumption measured for the GTX 1060 is around 122 watts - a whopping 44 watts less than AMD's RX 480. The power consumption difference between the GTX 1060 3GB and 6GB is negligible, although the 3GB-version surprisingly consumes around 4 watts more power under load. See More

Top Con

Less ideal for use with high-quality texture settings, not futureproof

Three gigabytes of video memory suffices for most gaming situations in 1080p, but the 3GB version of the GTX 1060 might hit limitations when using high-quality texture packs or when using high-resolution texture options (such as gaming in 4K). Multisample anti-aliasing is also quite memory intensive and is less ideal for use with this version of the GTX 1060. Although the lower memory might not form a major issue nowadays, future titles will require more and more video memory in order to run decently. See More

Top Pro

Can handle overclocks well

By overclocking your graphics card, you increase the clock speeds of the chip and memory to gain even more performance. The GTX 1060 handles overclocks well, relatively high boosts of over 200 MHz for both the GPU and memory clock speeds aren't uncommon without the use of special cooling solutions. In this case, an overclock of 229 MHz on the GPU and 380 MHz on the memory result in a 14% better performance in Battlefield 3, in 1440p resolution. See More

Top Con

Lacks support for SLI

The GTX 1060 does not offer support for SLI - short for Scalable Link Interface - which allows users to install multiple identical graphics cards in order to gain performance. In other words, you can't connect two or more GTX 1060's and run a dual- or multiple-GPU solution which is very remarkable for mid-range graphics cards. See More

Top Pro

Excellent 1080p performance, suitable for 1440p

The GTX 1060 (3 GB) performs extremely well in 1080 (Full HD) gaming situations, often providing a very playable framerate with maximum fidelity settings. For example, the average FPS in Rise of The Tomb Raider (maximum settings) is a very smooth 70 frames per second and the card scores 52 average frames per second in Hitman. The 3 GB GTX 1060 also does well in Tom Clancy's The Division, where it achieves a result of 58 average frames per second with maximum detail. Gaming in 1440p is also a possibility with the horse power the GTX 1060 3 GB provides. In Rise of the Tomb Raider, Hitman and The Division - all with maximum settings, the card is able to achieve average framerates of 46, 37 and 41, respectively. Performance can further be improved by toning down the details a bit. When comparing the GTX 1060 3 GB to its bigger 6 GB version with 10% more CUDA cores, a performance decrease is noticeable. In the same benchmarks, the larger 6 GB version has an advantage of 8 FPS in Rise of The Tomb Raider, 13 FPS in Hitman and 4 FPS in The Division, all measured in 1080p. See More

Top Con

Disappointing performance improvements when using Vulkan

Vulkan is a graphical API that allows developers to communicate better with the GPU, which in theory should result to performance improvements compared to the more standard DirectX 12 or OpenGL API's. The GTX 1060 doesn't do particularly better in Vulkan however, and the difference with the standard OpenGL is very minimal. Doom is one of the first (and only) titles with support for Vulkan and serves as a good benchmark for OpenGL vs Vulkan performance. Using Ultra settings and a 1080p resolution, the GTX 1060 3 GB is able to achieve an average framerate of 103 FPS and 65 FPS when tested in 1440p. When using Vulkan, performance improvements are not substantial with 109 FPS (+5,5%) and 71 FPS (+8,5%). AMD's new Polaris-architecture graphics cards are significantly better optimized for Vulkan compared to the GTX 1060 and other NVIDIA Pascal-based GPU's. For example, the AMD Radeon RX 480 performs significantly better in Vulkan, with 1080p results of 85 FPS for OpenGL and 111 FPS in Vulkan, a 30.59% increase. See More

Top Pro

Offers exclusive features such as Ansel and Simultaneous multi-projection

The GTX 1060 and other Pascal-based GPU's from NVIDIA offer a couple of exclusive features that aren't available on previous-generation graphics cards or current GPU's made by AMD. Taking advantage of the new GPU architecture, NVIDIA has introduced a feature called simultaneous multi-projection. It allows developers of games and applications to improve performance when rendering multiple viewports of the same image. This is particularly useful when using a multi-monitor setup or in virtual reality where two images are required, one for each eye. Simultaneous multi-projection allows up to 16 different viewpoints and only requires calculating the geometry of a scene once. In compatible games, users of multi-screen setups can calibrate this experience so that distortion no longer occurs. Virtual reality games can use SMP to improve performance, although developers will specifically need to implement this feature in their games. Ansel is another feature that is exclusive to NVIDIA's Pascal-based graphics cards. Ansel can be described as a very extensive 'photomode', where you can capture massive in-game screenshots of several gigapixels or capture images in 360 degrees. The player is also able to use filters, adjust camera positions, take HDR-images and share them via the built-in software. See More

Specs

Release Date:Jul 19th, 2016

Memory Type:GDDR5

Memory Clock:2002 MHz

Memory Size:3 GB

See All Specs >

NVIDIA GeForce GTX 1080

Top Con

Expensive

Expensive, so not a "value" GPU. See More

Top Pro

Significant price drop since release, making it better value.

Since the GTX 1080 TI came out, the asking price for these decreased. See More

Top Con

Disappointing performance improvements when using Vulkan

Vulkan is a graphical API that allows developers to communicate better with the GPU, which in theory should result to performance improvements compared to the more standard DirectX 12 or OpenGL API's. The GTX 1080 doesn't perform particularly better in Vulkan however, and the difference with the standard OpenGL is minimal at higher resolutions. Doom is one of the first (and only) titles with support for Vulkan and serves as a good benchmark for OpenGL vs Vulkan performance. In 1080p Full HD resolution and Ultra settings, the GTX 1080 is able to reach an average framerate of 140 FPS in OpenGL. Vulkan improves the framerate to 166 FPS, a fifteen percent increase. Starting from 1440p resolutions however, performance improvements using Vulkan are very minimal and not noticeable during gameplay. The 1080 does pretty well at 109 FPS in 1440p, while Vulkan only marginally improves this result with 145 FPS, a 5% increase. For comparison: AMD's RX 480 card does perform significantly better with Vulkan and higher framerates, with a performance boost of 29.3%. Similar results are seen when testing in 4K. In this case, the GTX 1080 using Vulkan actually performs worse than the standard OpenGL, with 59 FPS and 60 FPS respectively. AMD's RX 480 is better optimized, as it's able to achieve a performance increase of 24.7% in this scenario. In short, Vulkan performance seems particularly useful when gaming in Full HD, but it doesn't provide much performance benefits otherwise. It would appear that NVIDIA's Pascal architecture isn't optimized for high-resolution Vulkan gaming. See More

Top Pro

Amazing performance

GTX 1080 is the most powerful consumer-level GPU offered by Nvidia that's currently on the market. At 1440p with highest available settings it has an average fps of 116.5 for Dirt Rally, 101.9 for Battlefield 4 and 75.8 for GTA V. Compared to the previous high-end NVIDIA GPU, the GTX 980 Ti, that's an average performance increase of 20%. See More

Top Con

No native support for 3- and 4-way SLI

SLI - short for Scalable Link Interface - is NVIDIA's technology of combining the power of two or more identical GPU's in order to reach a better performance. In other words, you can use multiple GTX 1080 videocards to further increase performance. Although the GTX 1080 supports 2-way SLI without a problem, NVIDIA does not offer support for 3- and 4-way SLI. The included SLI-bridge which serves as a connector between the two cards, is only compatible in a 2-way configuration. 3-way and 4-way SLI are possible, but aren't supported. You'll have to use an older SLI-bridge found on older GeForce models and you'll need to generate an 'Enthusiast Key' on NVIDIA's website. However, NVIDIA does not guarantee a 3- or 4-way configuration will provide any noticeable benefits. See More

Top Pro

Very power efficient

While performance is higher than its competitors, the GTX 1080 FE actually uses less power. The maximum amount of power consumption this GPU requires is around 185 watts, which is an improvement of over 35% compared to NVIDIA's previous generation high-end graphical card, the GTX 980 Ti. This also plays a positive role when choosing a power supply, or determining if you need to upgrade your existing PSU. See More

Top Pro

Well optimized

NVIDIA properly optimized the GTX 1080 FE for DirectX. This means that games supporting DirectX 11 will see a slight performance boost, but more-so for the upcoming games using DirectX12. See More

Top Pro

Very quiet operation

The GTX 1080 FE runs at or under 41 dB during idle (which is comparable to the noise a refrigerator produces), and at or under 49.4 dB when stressed in benchmarks. The actual results may be lower - the CPU cooler sometimes was louder which skews the results. The only time noise could be considered an issue is at high fps when "annoying coil whining" sounds occurred. See More

Specs

Release Date:May 27th, 2016

Memory Size:8192 MB

Memory Type:GDDR5X

Memory Clock:1251 MHz

See All Specs >

122 Community Recommendations

+62

Request recommendations from the community

Contributor for 10 months

3

Total
Recs.

50

Total
Karma

AMD Radeon RX 480

Recommended 8 months ago

Jakub hasn’t added their experience, pros or cons to their recommendation.

Contributor for 10 months

3

Total
Recs.

50

Total
Karma

MSI Computer Radeon RX 480 Gaming X 4GB

Recommended 8 months ago

Jakub hasn’t added their experience, pros or cons to their recommendation.

Contributor for a year

15

Total
Recs.

410

Total
Karma

NVIDIA GeForce GTX 1080

Recommended 10 months ago

Amazing performance

Significant price drop since release, making it better value.

TheIceBladeNetwork

Contributor for 2 years

10

Total
Recs.

0

Total
Karma

NVIDIA GeForce GTX 1060 6 GB

Recommended 10 months ago

Outperforms AMD's RX 480

Low power consumption

TheIceBladeNetwork

Contributor for 2 years

10

Total
Recs.

0

Total
Karma

NVIDIA GeForce GTX 1070

Recommended 10 months ago

Doesn't produce much heat

Good price-for-performance

Contributor for 10 months

38

Total
Recs.

4.7K

Total
Karma

NVIDIA GeForce GTX 1070

Recommended 10 months ago

Very quiet operation

Contributor for a year

15

Total
Recs.

0

Total
Karma

AMD Radeon RX 480

Recommended a year ago

Two RX480 cards are a decent alternative for a single GTX 1080

Contributor for a year

3

Total
Recs.

0

Total
Karma

NVIDIA GeForce GTX 1060 6 GB

Recommended a year ago

tr1207 hasn’t added their experience, pros or cons to their recommendation.

Contributor for a year

5

Total
Recs.

0

Total
Karma

AMD Radeon RX 470

Recommended a year ago

surubutna hasn’t added their experience, pros or cons to their recommendation.

Contributor for a year

16

Total
Recs.

165

Total
Karma

NVIDIA GeForce GTX 1060 6 GB

Recommended a year ago

Lacks support for SLI

Can handle overclocks well

Adequate amount of VRAM available
