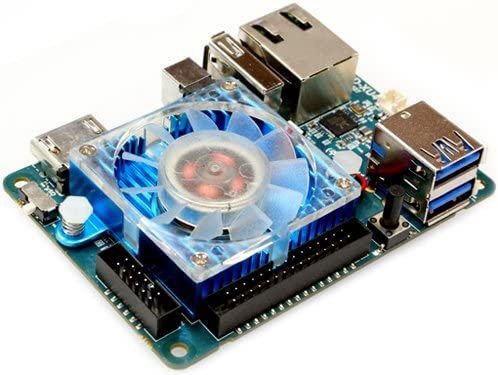

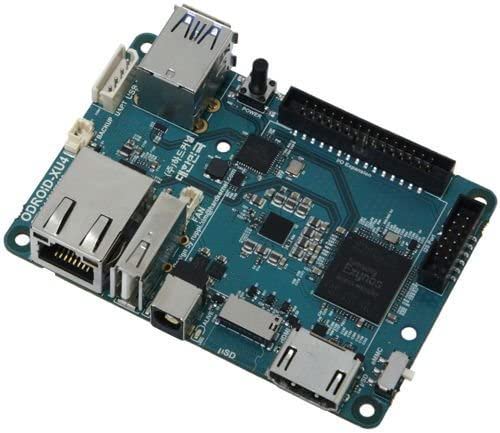

The ODROID GPIO pins operate at 1.8V which means that it cannot support most accessories and sensors on the market which operate at 3.3V or 5V. But this can be fixed for the XU4 with the XU4 Shifter Shield which adapts them for voltages used in the market. It comes at an extra cost of $18 though. See More

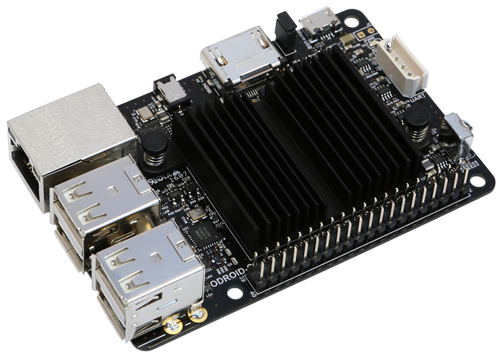

Early revisions of the C2 use a 2.5mm power socket instead of the micro USB port available on the board or any of the other USB ports. While not a drawback in terms of strength of the board, it's a bit annoying having to order a new power supply to work with the C2. Later revisions of the board can use the USB port for charging. However, ODROID recommends using the power socket if there are several devices attached to the board because they can increase the draw up to 2A and a lot of cheaper USB power adapters won't do 2A. See More
It's not unusual for the C2 to have a "Mode not supported" message when first booted up and connected to a monitor through the HDMI port. This can be fixed by logging through SSH and editing the boot.ini on a FAT partition on the SD card to set the correct HDMI resolution and the process is detailed pretty well on the ODROID wiki but it may be out of scope for some users and pretty annoying for the rest. See More
The C2 uses a 2.5mm power socket instead of the micro USB port available on the board or any of the other USB ports. While not a drawback in terms of strength of the board, it's a bit annoying having to order a new power supply to work with the C2. Newer versions of thhe C2 have jumper settings to use micro usb as power or OTG. See More
The Tinker Board uses the same GPIO libraries as Raspberry Pi does. This means that users coming from Raspberry Pi who want to play around with the Tinker Board's GPIO pins will find it very easy to do so. See More
You can get the official Linux image for the Tinker Board website. It's actually a customized version of Debian that's changed to work as smoothly as possible on Tinker Board's hardware. It comes with all the essential applications every PC has nowadays (web browser, text, editor, etc.) and some more specialized tools that are used to control the GPIO pins and that allow more advanced users to "talk" to the hardware. See More
The Banana Pi is pretty noticeable a Rapberry Pi lookalike and the name does not hide this information either. Unfortunately it's a bit larger than the Raspberry Pi, making it very hard to fit into most Raspberry Pi cases. See More
Does not fit most Raspberry Pi cases, even though it's where it clearly has gotten the inspiration from
The A20 chip that the Banana Pi uses lacks a true Camera Serial Interface implementation, instead it uses a parallel camera interface. The problem with this is that there are no off-the-shelf camera modules that support this and can connect to the Banana Pi, but it should be mentioned that the makers of Banana Pi have promised to create a camera module that is supported by it. See More
Other than having a port of Raspbian (the official OS for Raspberry Pi) available for use with full capabilities, Banana Pi can also use many applications that were originally written for Raspberry. One of these is WiringPi, a C/C++ library which gives easy access to Raspberry's I/O with a strong Arduino flavor. But that is just one example of the many open source projects being ported to Banana Pi. See More
LattePanda brings single board computers to a whole new level of power and performance. Turbocharged with an Intel Quad Core 1.8GHz processor, 2-4GB RAM and 32-64GB onboard flash memory, LattePanda can easily carry out image recognition, real-time CNC control and more. See More
Even though it is quite powerful and may seem a little scary at first, the Udoo is actually really user-friendly. After hooking it up with a monitor, keyboard and mouse, it's already configured with either Ubuntu or Android and you don't need to do anything more in order to use it as a simple PC for day-to-day use. See More
Both Android and Ubuntu images lack some useful software which would be installed out-of-the-box for most Android or Linux devices. For example in Android it lacks the Play Store app and other Google apps. These can of course be installed but need to be done so manually (at least the Play Store) by flashing them from the SD card. See More
Hummingboard Gate has a native mikroBUS system which lets users attach any “click board” that’s compatible with MikroElektronika’s system. This way the board can be extended by adding motion sensors, wifi cards, physical buttons, temperature sensors, NFC or Bluetooth and much more. See More
